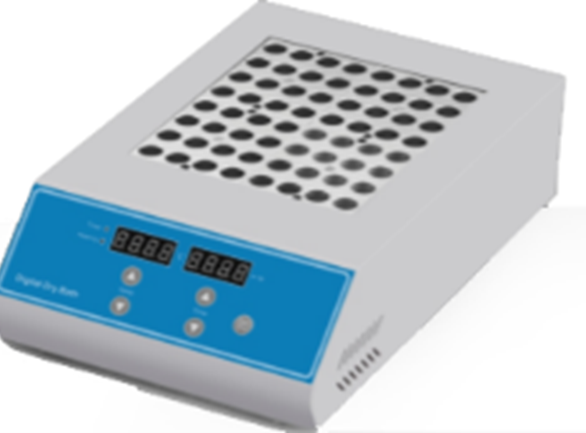

Heating Block MA-1001 / MA-1002

The instrument is controlled by microcomputer and can be used in sample reservation, reaction of DNA amplification, electrophoresis, solidification and other kinds of serum biochemical thermostatic incubation processes.

FEATURES:

  • Real-time temperature, countdown display
  • Wide temperature range
  • Convenient block replacement, easy to clean and disinfect
  • Automatic fault detection and alarm function
  • Built-in over-temperature protection device
  • Temperature deviation calibration function

Download Product PDF



SKU: N/A Category:

MODEL SPECIFICATIONS:

Model MA1001 MA1002
Temp. Range RT.+5C -160℃ RT.+5C -160℃
Temp. Accuracy ±0.5℃(@40℃)
Temp. Accuracy ±1℃(@120℃)
Temp. Uniformity ±0.5℃
Display Accuracy 0.1℃
Time Range 1min-99h59min/∞
Heating Time ≤15min (from 25℃ to 160℃) ≤15min (from 25℃ to 160℃)
Block Quantity 1 2
Max. Power 300W 500W
Power Supply AC220V or AC110V, 50/60Hz
Dimensions (mm) 260*220*100 260*220*100
Weight (kg) 5 5,5
Package Size (mm) 360*310*230
Gross Weight (kg) 6

OPTIONAL BLOCKS:

Type Tube Diameter Tube Quantity Model Tube Diameter Tube Quantity
MA01 6mm 48 MA10 26mm 8
MA02 7mm 48 MA11 28mm 4
MA03 10mm 24 MA12 40mm 3
MA04 12mm 24 MA13 0.2ml Centrifuge Tube 48
MA05 13mm 24 MA14 0.5ml Centrifuge Tube 48
MA06 15mm 16 MA15 1.5ml Centrifuge Tube 24
MA07 16mm 16 MA16 2.0ml Centrifuge Tube 24
MA08 19mm 12 MA17* 0.2ml PCR Plate 96
MA09 20mm 12 MA18* 0.2ml Elisa Plate 96
* Models MA17 and MA18: Only for MA-1002
Model

MA-1001, MA-1002
