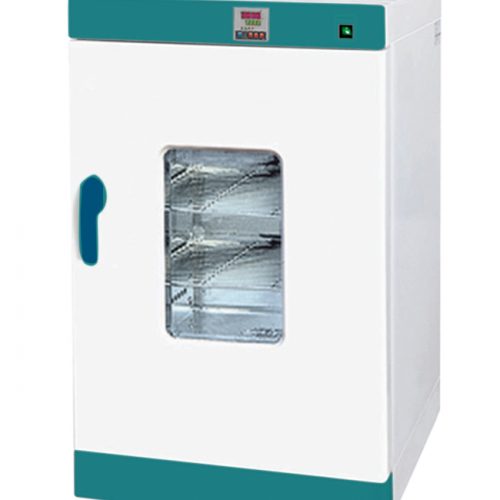

Forced Air Drying Oven MA-VF-Series

FEATURES:

  • External material: cold rolled steel with anti-bacteria powder coating
  • Stainless steel inner chamber, with adjustable shelves
  • PID microprocessor intelligent temperature controller
  • Double-layered glass observation window, adjustable airtight buckle lock (except MA-V35F)
  • Over-temperature protection
  • Optional: Independent temperature protector

Download Product PDF





SKU: N/A Category:
Add to quote

MODEL SPECIFICATIONS:

Model MA-V30F MA-V35F MA-V45F MA-V65F MA-V70F MA-V125F
Capacity 30L 35L 45L 65L 70L 125L
Temp. Range RT+10～300℃ RT+10～250/300℃ RT+10～300℃ RT+10～300℃ RT+10～250/300℃ RT+10～300℃
Temp. Precision 0.1°C
Temp. Fluctuation ±0.5°C
Ambient Temp. 5～40℃
Timing Range 1～9999min
Shelves No. 2 pcs
Display LED LCD LED LCD LED
Consumption 800W 550W 1200W 1600W 1250W 2300W
Power Supply AC220V±10%, 50/60Hz (standard); AC110V±10%, 60Hz (optional)
Internal Size (W*D*H) 310*310*310 340*325*290 350*350*350 400*360*450 400*375*470 500*450*550
External Size (W*D*H) 460*510*695 490*520*690 500*550*735 550*550*840 540*550*870 636*680*915
Package Size (W*D*H) 550*580*770 620*630*830 620*585*805 640*640*905 670*660*1040 725*735*1005
Gross Weight (kg) 34 55 39 47 75 58



Model MA-V136F MA-V225F MA-V230F MA-V429F MA-V625F MA-V640F MA-V960F
Capacity 140L 225L 230L 420L 625L 600L 900L
Temp. Range RT +10～250/300℃ RT +10～250/300℃ RT +10～300℃ RT +10～250/300℃ RT +10～300℃ RT +10～250/300℃ RT +10～250/300℃
Temp. Precision 0.1°C
Temp. Fluctuation ±0.5°C
Ambient Temp. 5～40℃
Timing Range 1～9999min
Shelves No. 2 pcs 3 pcs 4 pcs
Display LCD LED LCD LED LCD
Consumption 1500W 2100W 3000W 4000W 5000W 4500W 6000W
Power Supply AC220V±10%, 50/60Hz (standard); AC110V±10%, 60Hz (optional), 380V, 50Hz (MA-V225F – 300°C) Standard: 380V, 50/60Hz

Optional: 220V, 50/60Hz

 380V, 50/60Hz


Internal Size (W*D*H) mm 450*557*520 500*615*720 600*500*750 600*550*1300 660*760*1250 800*600*1300 1000*600*1600
External Size (W*D*H) mm 600*740*920 650*800*1130 730*670*1220 750*730*1700 895*925*1830 950*780*1720 1140*800*2150
Package Size (W*D*H) mm 730*860*1080 780*920*1270 770*840*1420 870*860*1830 995*980*1980 1080*910*1880 1260*910*2200
Gross Weight (kg) 85 110 103.5 145 277 170 230
Model

MA-V30F, MA-V35F, MA-V45F, MA-V65F, MA-V70F, MA-V125F, MA-V136F, MA-V225F, MA-V230F, MA-V429F, MA-V625F, MA-V640F, MA-V960F
