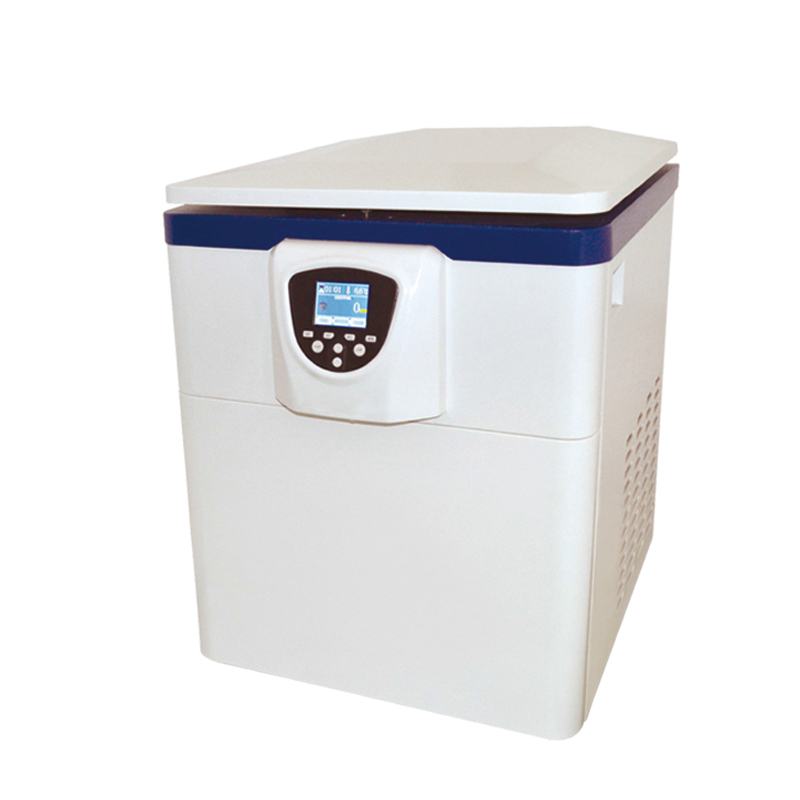

Floor Standing Low Speed Refrigerated Centrifuge FLS-VL5R / FLS-VL6R / FLS-VL8R

Floor Standing Low Speed Refrigerated Centrifuge FLS-VL5R / FLS-VL6R / FLS-VL8R

FEATURES:

  • LCD display, microprocessor control
  • AV motor: high torque and variable frequency
  • Safety: Over-temperature and over-speed protection, imbalance detection, special shock absorbers to keep motor running smoothly
  • 20 programs memory
  • 10 levels speed increase and decrease control

Download Product PDF

- +
SKU: N/A Categories: ,

MODEL SPECIFICATIONS:

Model FLS-VL5R FLS-VL6R FLS-VL8R
Max. Capacity 4*750ml 4*750ml 4*750ml
Max. Speed 5500rpm 6500rpm 8000rpm
Max. RCF 4800xg 4800xg 5940xg
Speed Precision ±50rpm
Refrigeration System CFC-free (R404a)
Temp. Range -20℃～40℃
Temp. Precision ±1℃
Timing Range 0～99h59min
Noise <65dB
Consumption 2.0KW
Power Supply AC110/220V, 50/60Hz
External Size (W*D*H) mm 710*560*770
Package Size (W*D*H) mm 885*705*1195
Nett / Gross Weight (kg) 160 / 215

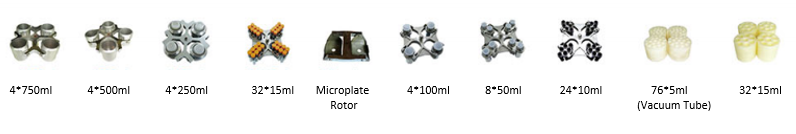

ROTOR:

Rotor Capacity FLS-VL5R FLS-VL6R FLS-VL8R
Speed (rpm) RCF (xg) Speed (rpm) RCF (xg) Speed (rpm) RCF (xg)
Angle Rotor 12*10ml 5500 3580 6500 3920 8000 5940














Swing Rotor

 4*750ml 4000 3500 4000 3500 4000 3500
4*500ml (round cup)

(Available adaptor:

4*250ml/300ml, 4*100ml,

12*50ml, 32*15ml,

48*10ml, 72*5ml)



4000



3780



4000



3780



4000



3780
148*5ml/2ml (vacuum tube) 4000 2900 4000 2900 4000 2900
16*15ml 5000 4500 5000 4500 5000 4500
76*5ml/2ml (vacuum tube) 4000 3100 4000 3100 4000 3100
4*100ml 5000 4800 5000 4800 5000 4800
24*10ml 4000 2810 4000 2810 4000 2810
8*50ml 4000 2810 4000 2810 4000 2810
32*15ml 4000 2810 4000 2810 4000 2810
32*10ml 4000 2810 4000 2810 4000 2810
48*5ml/2ml (vacuum tube) 4000 2950 4000 2950 4000 2950
Microplate 2*2*96 Well 4000 2360 4000 2360 4000 2360
Model

FLS-VL5R, FLS-VL6R, FLS-VL8R
